3D print request
Tablet wall mount, three parts

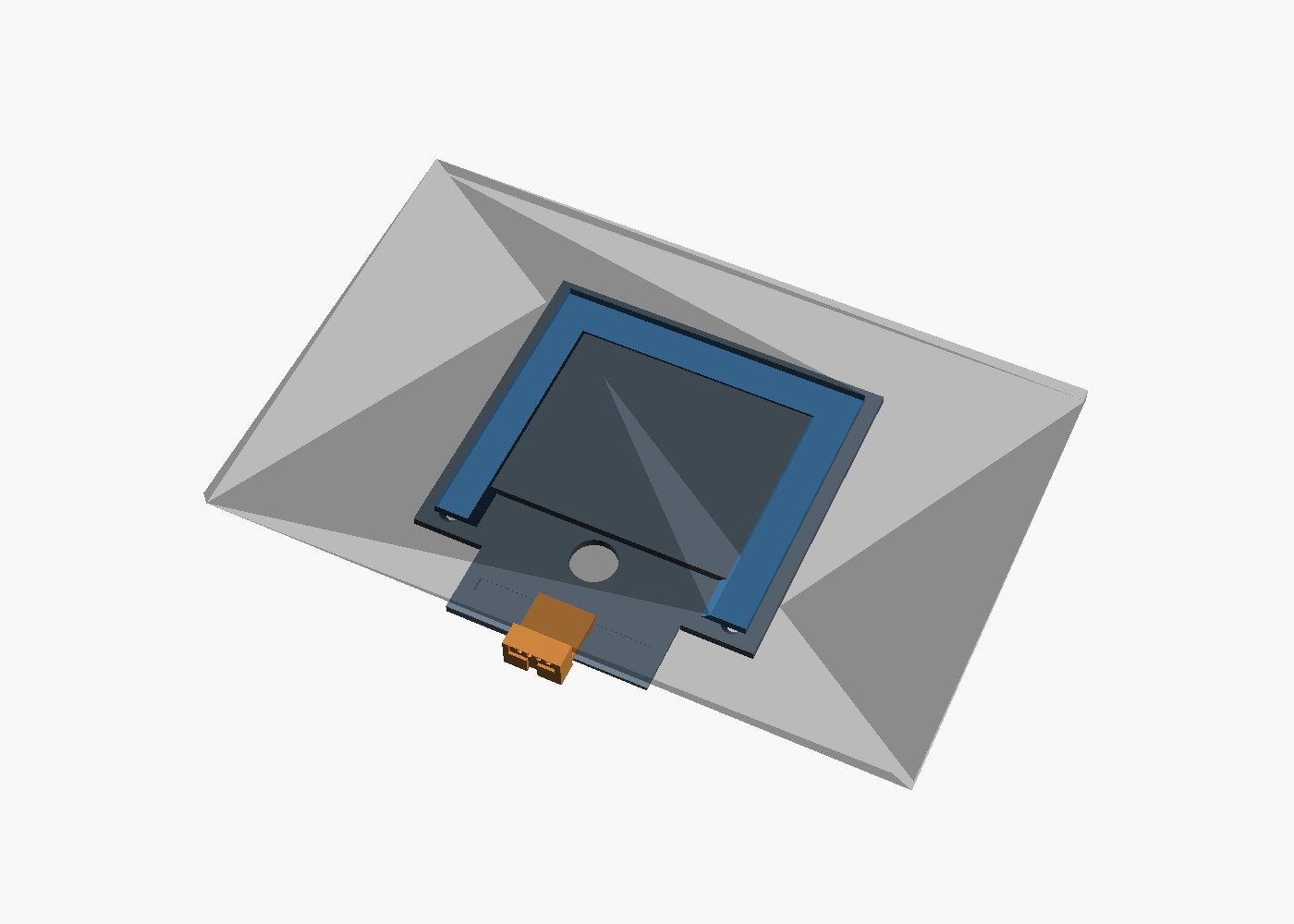

A wall mount for a Samsung Galaxy Tab S6: a plate that screws to the wall, a U-frame that glues to the tablet, and a small block that holds four spring contacts. Everything you need is on this page. The three STL files are watertight solids in millimetres.
This site: https://wallplate.daha.us/ · also reachable at https://www.brentrussell.com/wallplate/
1 · Files
Download
| File | Size, mm | Orientation | Notes |
|---|---|---|---|

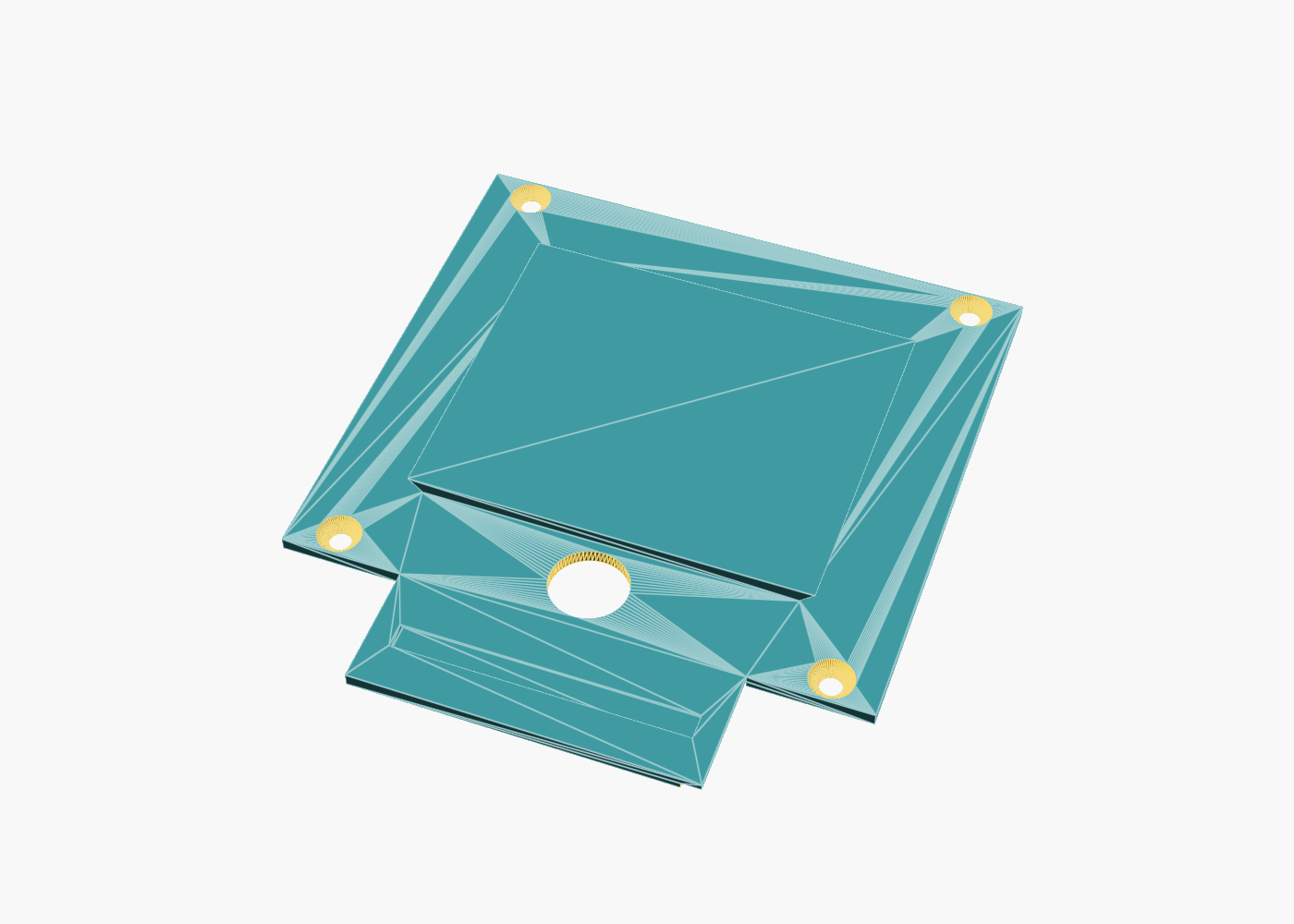

| plate.stl | 120 × 135 × 6 | as-is, flat face down | Raised rectangular tongue on top with 45° undercut flanks; four countersunk holes; one 16 mm hole; a shallow dovetail slot across the narrow stem. |

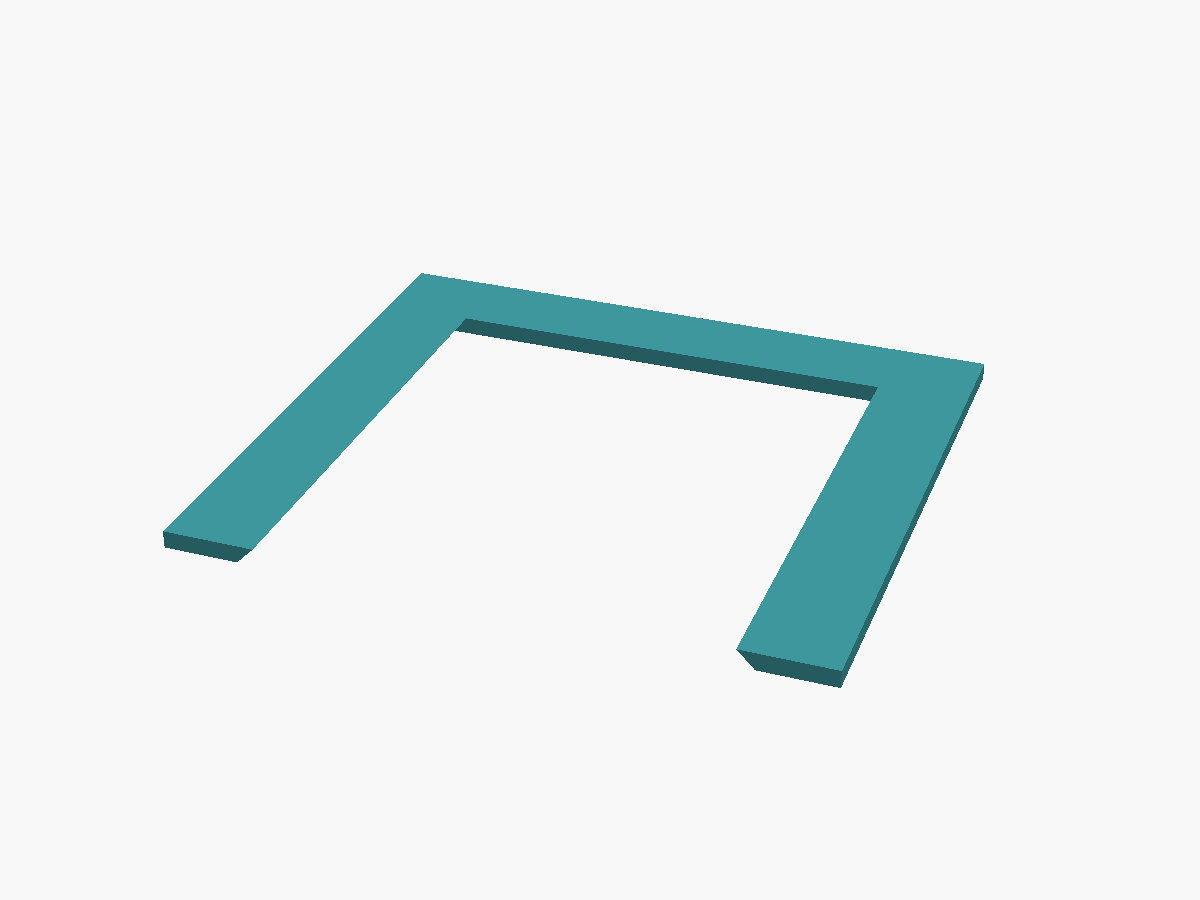

| frame.stl | 110 × 100 × 3 | as-is, flat | Flat U shape. The inner edges of the opening are angled 45°, wider on the bed side. |

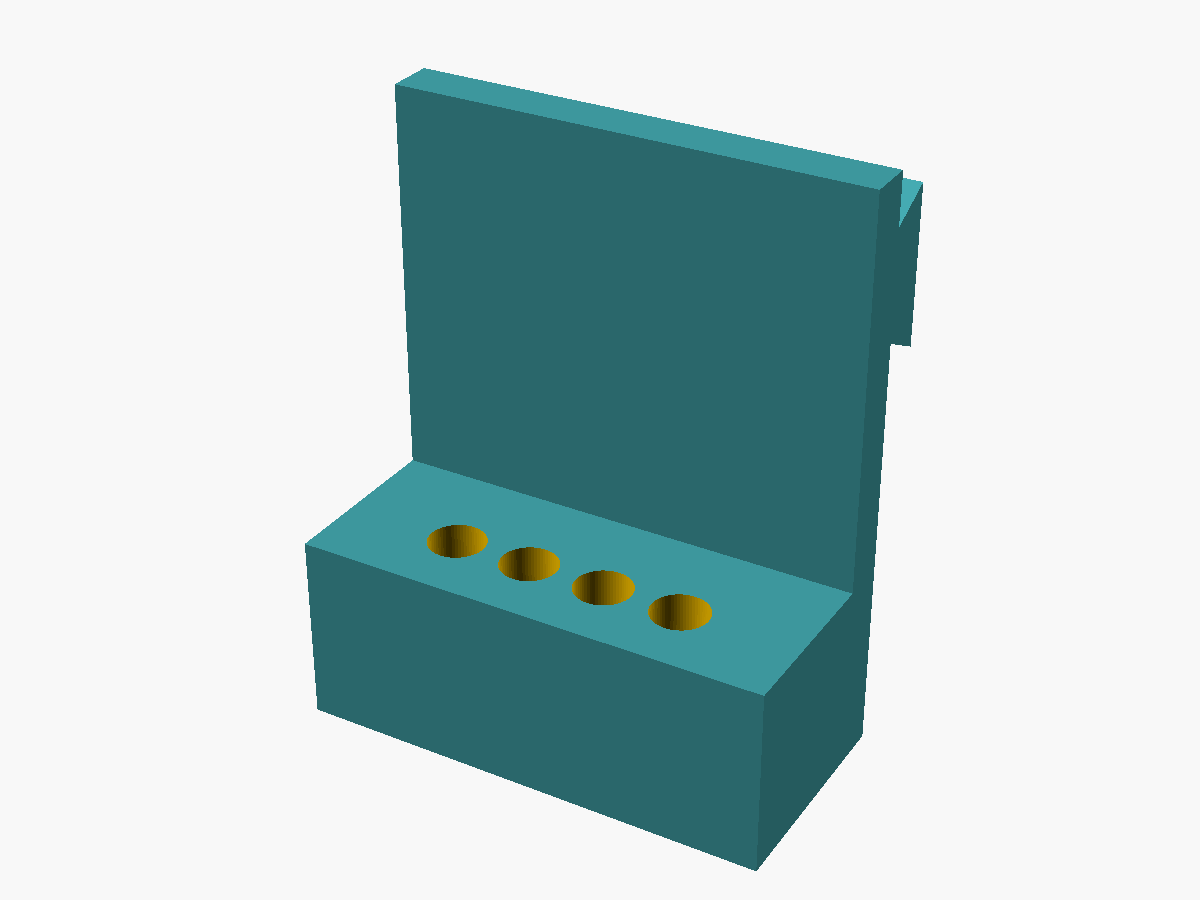

| block_p30.stl block_p33.stl block_p35.stl | 20 × 11.5 × 25 each | as-is, already stood on their base | Three versions of a small block that differ only in the spacing of four 2.4 mm holes in the top face. Please print all three; they weigh about two grams each. A thin fin rises behind each with a dovetail rail at the tip. |
2 · Settings
Print settings
| Material | PLA, black |
|---|---|
| Layer height | 0.2 mm |
| Infill | 40 % |
| Walls | 3 perimeters |
| Top / bottom layers | 4 |
| Scale | 100 %. Please no fit compensation or hole scaling; the small holes are undersized on purpose and get drilled after printing. |
| Supports | None needed. All overhangs are 45° or less. |
| Quantity | 1 plate, 1 frame, 1 of each of the three blocks |
What matters most: dimensional accuracy on the tongue of the plate and the opening of the frame, which slide together with 0.3 mm clearance per side. If the printer tends to run oversize on outer walls, please don't compensate in the slicer; a light sanding on the tongue is the intended fix.
3 · What they look like
Renders
